Double Sprockets for Two Single Chains American Standard
Korea Ever-Power American standard double simplex sprockets drive two parallel single-strand chains simultaneously from one shaft. The hub carries two tooth rows machined to ANSI B29.1 profile, separated by the Cmax dimension — the maximum permitted centre-to-centre spacing between the two chain strand centrelines. Each chain run is entirely independent: separately tensioned, separately replaceable, carrying its own load. This is the defining advantage over a duplex sprocket and duplex chain, where both strands are mechanically linked.
#40 – #80
Chain Size Range
Z=9 – 30
Tooth Count Range
2 Strands
Two Independent Chains
ANSI B29.1
Standard
Double Sprockets for Two Single Chains – American Standard
The American standard double simplex range covers chain sizes #40 through #80 in simplex configuration, tooth counts Z=9 to Z=30. Stock bore is standard — the hub is supplied with pilot bore, machined to your shaft diameter and keyway to ASME B17.1 on order.
Typical applications: wide slat conveyors in American food and automotive plants, combine harvester elevator drives in ANSI-chain markets (North America, Korea, Australia), bucket elevator head-shaft drives, and wide-track agricultural machinery where chain spacing must accommodate wide slat bars or flight attachments at a spacing not achievable with standard duplex chain pitch.
⚖️ Load sharing between two strands
On a double simplex drive, load is shared between the two independent chains. However, equal load sharing requires:
- Both chains the same chain number and grade
- Both chains tensioned to equal sag independently
- Both sprockets co-axial — machined in single chucking
- Both driven sprockets at equal spacing on the driven shaft
Mismatched chain elongation causes one strand to carry the majority of the load — monitor chain sag on both strands at each maintenance interval.
When to Choose Double Simplex over ANSI Duplex Chain
ANSI duplex chain (#40-2, #50-2, #60-2 etc.) and double simplex sprockets are NOT interchangeable — they are different design solutions for different operational needs. The choice between them affects maintenance cost, chain replacement strategy and conveyor width flexibility.

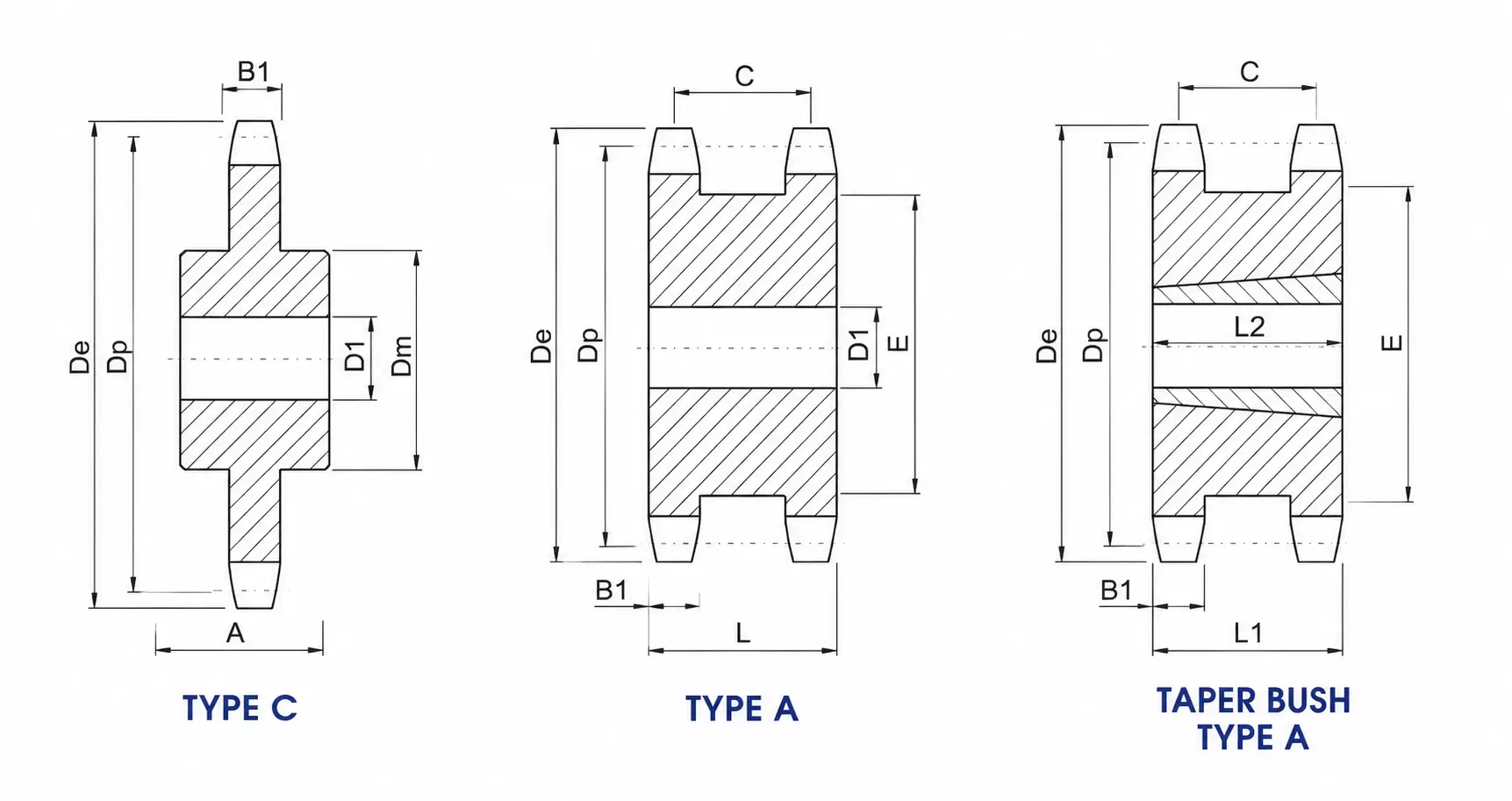

| Factor | Double Simplex Sprocket + 2× Single Chain | Duplex Sprocket + 1× Duplex Chain |
|---|---|---|
| Chain replacement | Replace one strand at a time | Replace full duplex chain (both rows together) |
| Conveyor width flexibility | Any spacing up to Cmax — slat width not constrained by duplex pitch | Fixed by duplex chain inner width increment |
| Independent tension control | Yes — each strand independently adjusted | No — single take-up tensions both rows equally |
| Chain cost per unit | Two rolls of standard simplex — widely available | Single roll of duplex — lower weight |
| Sprocket cost | Higher — double tooth row hub | Lower — standard duplex hub |
| Best for | Wide conveyors, asymmetric loading, MRO-critical drives | Standard width conveyors, even loading, lower initial cost priority |
Key: Z = teeth | de = tip dia. (in) | dp = pitch circle dia. (in) | Cmax = max chain strand centreline spacing (in) | B = hub width per side (in) | Bore max = max stock bore (in) | All: ANSI B29.1 tooth profile, C45 steel, stock bore
Specifications — #40 through #80
#40 Double Simplex | Pitch ½″ / 12.70 mm | Cmax ≈ 1.00″ (25.4 mm)
| Z | de (in) | dp (in) | Cmax (in) | B per side (in) | Bore max (in) |
|---|---|---|---|---|---|
| 9 | 1.670 | 1.440 | 1.000 | ⅞ | ¾ |
| 12 | 2.170 | 1.931 | 1.000 | ⅞ | ¾ |
| 15 | 2.650 | 2.408 | 1.000 | ⅞ | 1 |
| 17 | 2.980 | 2.724 | 1.000 | ⅞ | 1 |
| 21 | 3.620 | 3.360 | 1.000 | ⅞ | 1¼ |
| 25 | 4.260 | 3.988 | 1.000 | ⅞ | 1½ |
| 30 | 5.060 | 4.775 | 1.000 | ⅞ | 1½ |
#60 Double Simplex | Pitch ¾″ / 19.05 mm | Cmax ≈ 1.50″ (38.1 mm)
| Z | de (in) | dp (in) | Cmax (in) | B per side (in) | Bore max (in) |
|---|---|---|---|---|---|
| 9 | 2.490 | 2.153 | 1.500 | 1¼ | 1 |
| 15 | 3.990 | 3.593 | 1.500 | 1¼ | 1½ |
| 17 | 4.460 | 4.071 | 1.500 | 1¼ | 1½ |
| 21 | 5.400 | 4.970 | 1.500 | 1¼ | 2¼ |
| 25 | 6.360 | 5.875 | 1.500 | 1¼ | 2¼ |
#80 Double Simplex | Pitch 1″ / 25.40 mm | Cmax ≈ 2.00″ (50.8 mm)
| Z | de (in) | dp (in) | Cmax (in) | B per side (in) | Bore max (in) |
|---|---|---|---|---|---|
| 9 | 3.340 | 2.871 | 2.000 | 1½ | 1¼ |
| 15 | 5.270 | 4.784 | 2.000 | 1½ | 2 |
| 17 | 5.930 | 5.414 | 2.000 | 1½ | 2 |
| 21 | 7.200 | 6.620 | 2.000 | 1½ | 3 |
| 25 | 8.480 | 7.831 | 2.000 | 1½ | 3 |
#50 tables available on request. All bores stock bore — machined to your inch shaft size and ASME B17.1 keyway on order. Non-catalogue tooth counts Z=10–30 available. Contact us with chain number, tooth count and bore requirement.
